Laser Welding of Busbars

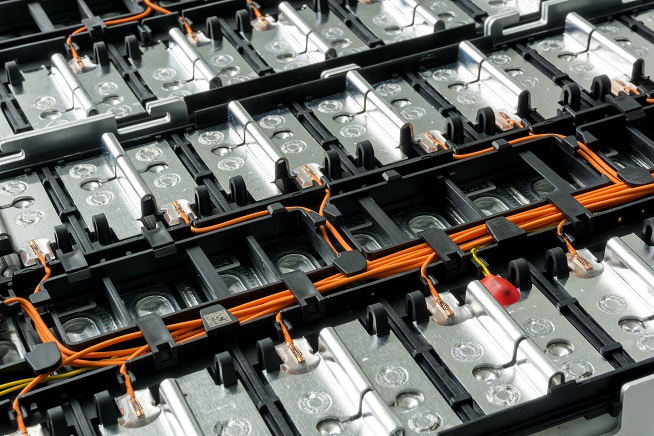

An electrical vehicle can include several hundred battery cells. The electrical contacting between batteries is established by busbars.
The laser welding with scanners has established itself as the preferred method for the safe joining of the busbar with the battery contacts. Using an on-the-fly welding process, the scan system can weld the many available electrical contacts almost without interruption.
Busbars for Prismatic Battery Cells
Prismatic cells are normally connected with the busbar through overlap connections. This permits larger tolerances and lower requirements for the position accuracy of the welding seam and it permits a faster processing of large quantities.
A typical system configuration is as follows:
- intelliWELD II PR
- Single-mode laser
- On-the-Fly machining with linear axes (Blackbird RTX)
- ScanControlUnit SCU-3 or ScannerControlBox SCB
Busbars for Round Cells
When connecting the busbars to round cells, higher requirements are placed for the positioning of the welding seams: The busbars are smaller and therefore require a higher precision. An upstream component position recording is recommended.
A typical system configuration is as follows:
- intelliSCAN FT
- Static processing
- ScaVis camera system
- ScanControlUnit SCU-3
